1. Trust Zone(M) Introduction

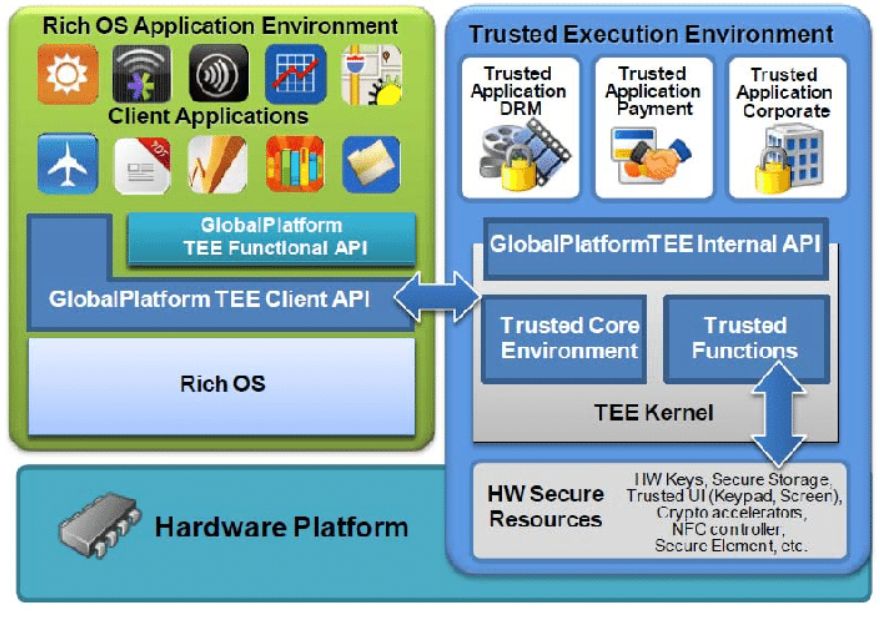

1.1. Market overview

• Fingerprint Identification

• Face ID

• Mobile Payment

• DRM(Data Rights Management)

• Smart Home

• …

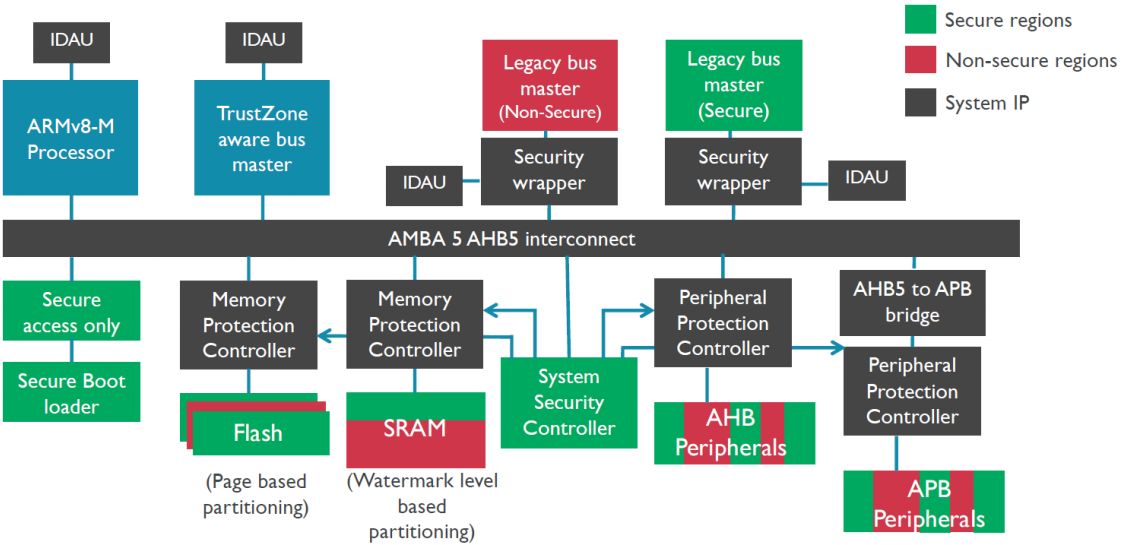

1.2. AMBA BUS

ISOLATION !!!

• AMBA AXI/AHB5 provides access permissions signals that can be used to protect against illegal transactions.

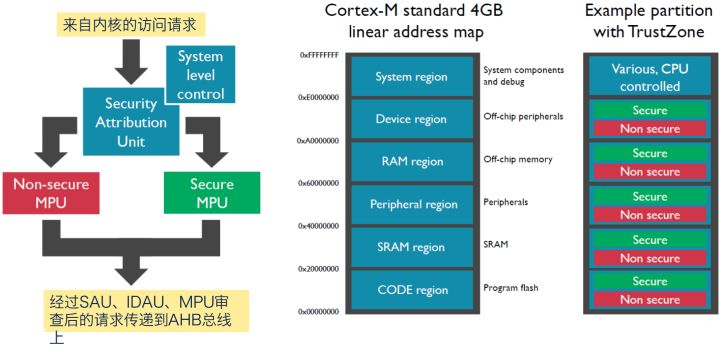

1.3. Architecture

• SAU (Security Attribution Unit)

• IDAU (Implementation Defined Attribution Unit)

• MPU (Memory Protection Unit)

1.4. Memory Layout

• Secure(S): memory and peripherals only accessible by Secure software.

• Non-Secure(NS): memory and peripherals accessible by All software.

• Non-secure Callable(NSC): contain tables of small branch veneers( entry points). there is the Secure Gateway(SG) instruction .

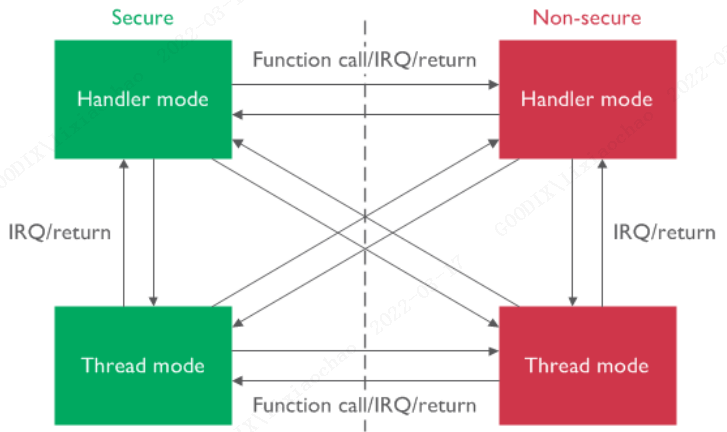

1.5. Interrupt&Mode

• Security Handler: trigger, if call S region by NS core status.

• All IRQs can be configed to Secure or Non-Secure by NVIC_INTS (Interrupt Target Non-Secure).

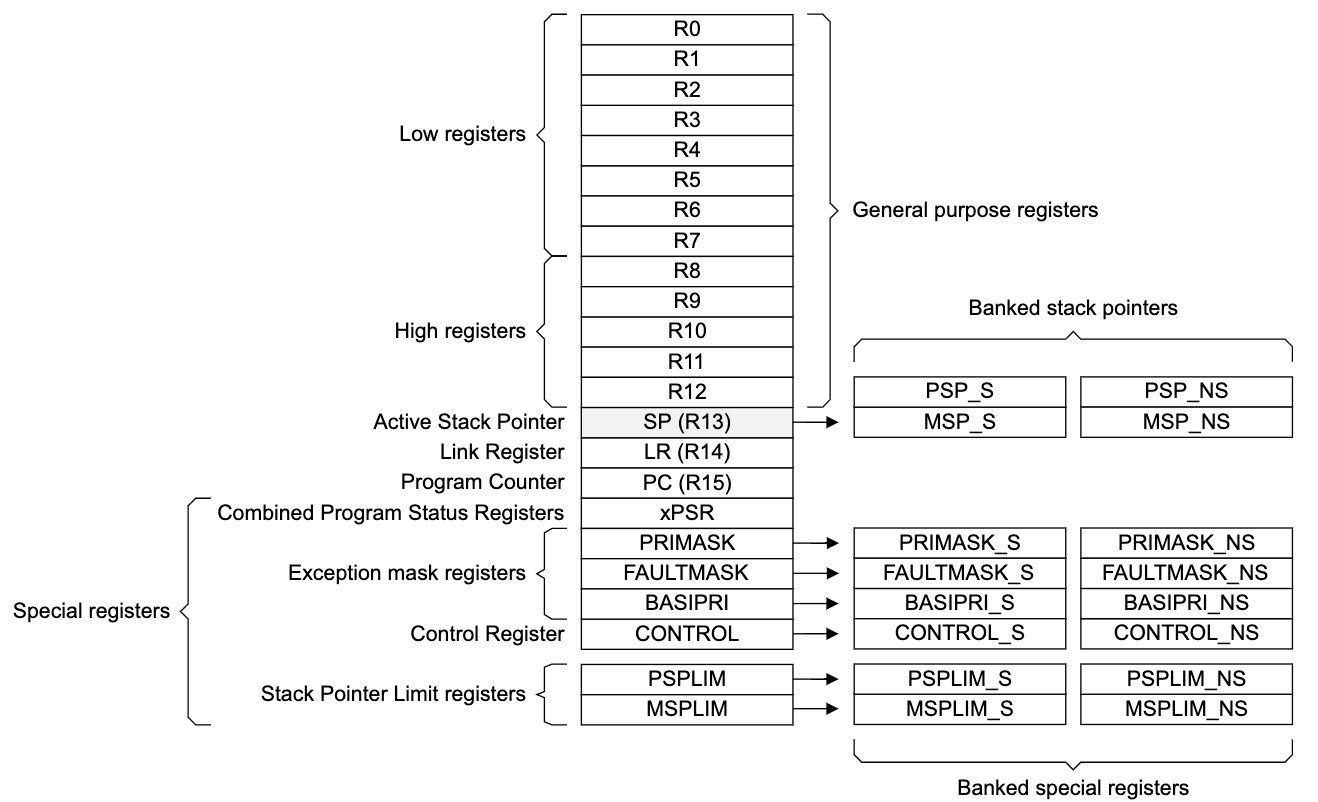

1.6. Core Registers

• Backup core registers when switch from Secure state to Non-secure state.

• Context switch more fast.

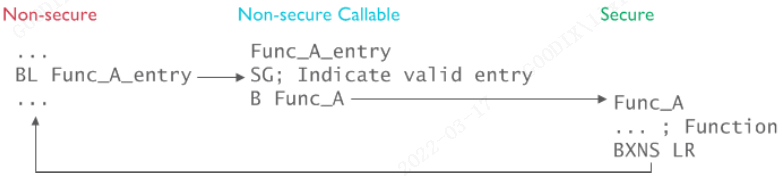

1.7. Secure Callable

• Instructions

1. SG (Secure Gateway) : switch from Non-secure to Secure state at the first instruction of Secure entry point.

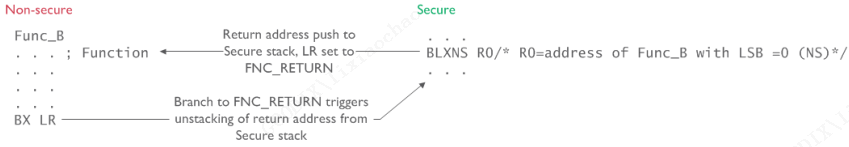

2. BXNS : Used by Secure software to branch or return to Non-secure program.

3. *BLXNS* : Used by Secure software to call Non-secure functions.

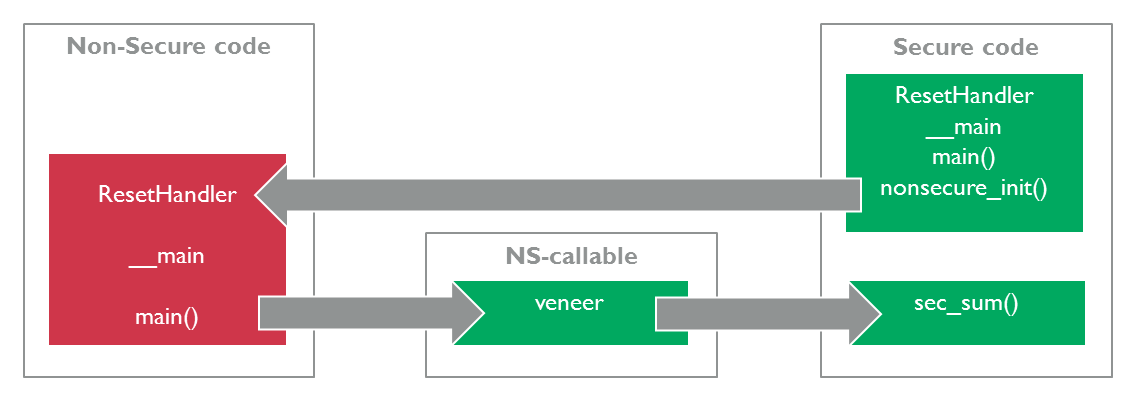

1.8. Secure Boot flow

• Boot Flow:

• Switch to NS State

typedef int __attribute__((cmse_nonsecure_call)) nsfunc(void);

    #define NS_START_ADDR       0x10000000
    int nonsecure_init() {
        SCB_NS->VTOR=NS_START_ADDR;
        uint32_t *vtor = (uint32_t *) NS_START_ADDR;

        __TZ_set_MSP_NS(vtor[0]);

        nsfunc *ns_reset = (nsfunc*)(vtor[1]);
        ns_reset();
    }

    int main() {
        nonsecure_init();
        printf(“ERROR:Should not return here!\n”);
        return 0;
    }

2. Software Design Guide

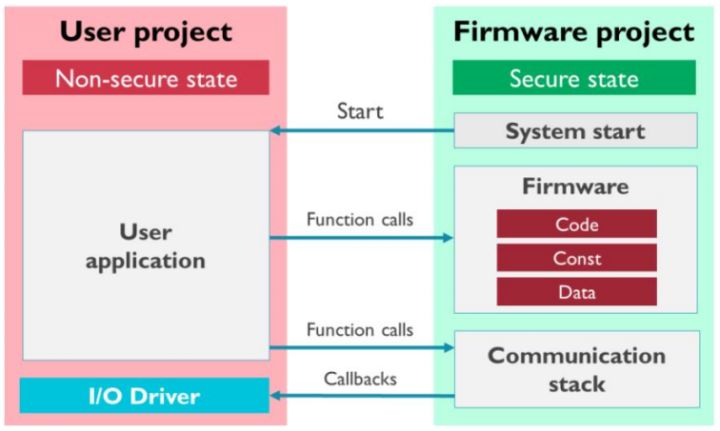

2.1. Develop Mode(without RTOS)

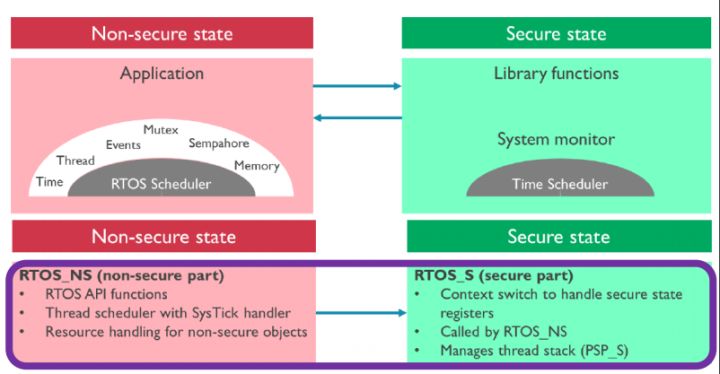

2.2. Develop Mode(with RTOS)

2.3. Trust Zone Software Tips

• Defining for Non-Secure function in secure region

1. Definition: attribution "cmse_nonsecure_entry"

__attribute__((cmse_nonsecure_entry))
       void fun_name{
           ...
       }

2. Linker file: sg veneer area locate at ".gnu.sgstubs"

.gnu.sgstubs : ALIGN (32)
       {
           . = ALIGN(32);
           _start_sg = .;
           ,*(.gnu.sgstubs*)		# sg veneer area
           . = ALIGN(32);
           _end_sg = .;
       } > FLASH-REGION-WITH-NSC-ENABLED

3. Build: build parameter "-mcmse"

gcc ... -mcmse ...

2.4. Trust Zone Software Tips(NS->S)

• Call from Non-Secure region to Secure function

1. Generate "CMSE_importLib.o" containing the needed address information

gcc --cmse-implib --out-implib=CMSE_importLib.o ...

2. Import NSC lib in non-secure project

gcc CMSE_importLib.o ...

2.5. Trust Zone Software Tips(S->NS)

• Call from Secure region to Non-Secure function: The "cmse_nonsecure_call" attribute is to clear the non banked general purpose registers before jumping back in the non-secure code

typedef void (*funcptr_ns) (void) __attribute__((cmse_nonsecure_call));

void ControlCriticalIO(funcptr_ns callback_fn){
    funcptr_ns cb = callback_fn;
    if (cb != 0) {
	/* do some critical things*/
	cb();
    }else {
	;// do nothing
}}

2.6. Secure Coding Style

• ARMv8-M Secure software guidelines is here
